The steel crucible I use for melting aluminium has carried out around 30 melts now and is looking the worse for wear.

Clay crucibles can be an expensive hobby - especially if you want a large number of them.  As I'm a beginner at all this, I'm reluctant to screw up commercially made crucibles at 30+ a time.  Inspired by this mad scientist page, it seemed like a sensible idea to try and cast some crucibles.

When handling the ceramic materials shown below, ensure you stick to any safety precautions as the dust is very fine.

12-Oct-02: First off, a wooden pattern is needed to drop in the plaster.  6 spruce planks were glued together, turned to a taper profile and painted.

This one represents about the highest diameter I can turn on the Myford ML7 and still clear the cross slide.  If I need to make anything bigger than this I'm going to have to pester someone with a wood lathe.

The box of matches gives an idea of size.  Diameter is tapered with 93mm bottom, 105mm top with a height of 187mm.  Thats 3 5/8", 4 1/8" and 7 3/8".  With a 10mm wall thickness the working capacity should be around 0.7 litres representing 1.9kg/4.1lb aluminium 5kg/11lb cast iron, and 6kg/13.2lb brass - plenty for smaller items.  I know the crucible will shrink from the mould, but I'm not sure how much at this stage, so the capacities about may need to come down slightly.

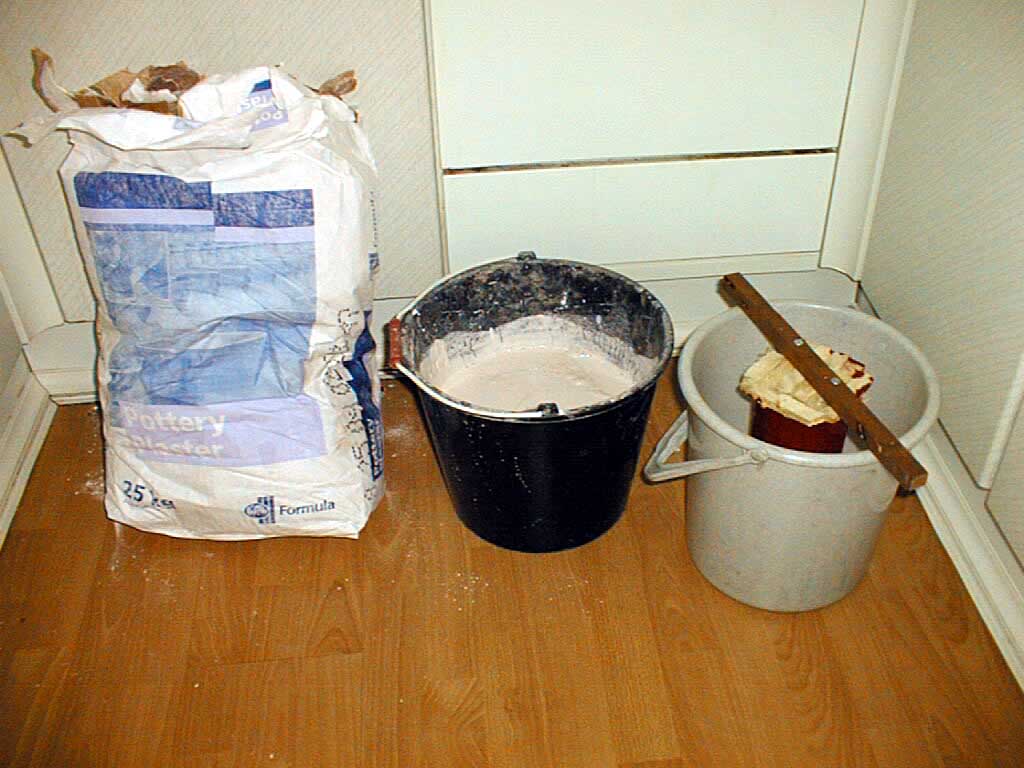

Armed with the pattern and a casting bucket, some potters plaster has been mixed up.  This is a special type of plaster designed for slip casting which sets quickly and has the additional property of being porous.  You can get this from ceramics supply places, I got mine from Brick House Ceramic Supplies (UK).

The wooden pattern has a strip of mahogany screwed to the top to keep it level when the plaster is poured in.

The plaster will try to displace the wooden pattern out of the bucket, so a 25kg sack of molochite has been placed on the top to keep things steady while the plaster sets.

It should set enough for the pattern to be pulled out after about 45-60 minutes.  Heat will be generated by the plaster as it sets.

The mould was tried out after about three hours, but was not a complete success.  Leaving the mould in the bucket was a bad move as the sides of the crucible cracked away from the base as it dried.

The mould has now been removed from the bucket - time to try again...

Latest update ---> This is not working out.  After another try, the clay is drying out but has cracked badly.

Fixes required: Rather than try to make up my own slip recipes, I will go and buy some ready made.  It might be a good idea to make the mould in two parts as I have not successfully removed a crucible from the mould yet!
